ELECTRICALLY HEATED CIGARETTE
SMOKING SYSTEM (EHCSS)
TOBACCO HEATING SYSTEM (THS)
Prime Version
Prime Version
ELECTRICALLY HEATED CIGARETTE
SMOKING SYSTEM (EHCSS)
TOBACCO HEATING SYSTEM (THS)
Prime Version
ELECTRICALLY HEATED CIGARETTE
SMOKING SYSTEM (EHCSS)
TOBACCO HEATING SYSTEM (THS)
Prime Version
ELECTRICALLY HEATED CIGARETTE
SMOKING SYSTEM (EHCSS)
TOBACCO HEATING SYSTEM (THS)
Key Info
A specially designed cigarette was inserted into a
battery-powered heater equipped with an array of eight blades that heated the tobacco and minimized burning during puffing.
User Experience
A flow sensor initiated the heating circle
for each of the blades as the puff was detected.
The design allowed for greater control
of the available heat resulting in lower
temperatures and less combustion as
compared to combustible lit-end cigarettes.
Experience limited to 8 puffs per cigarette.
*Name in regulatory submissions

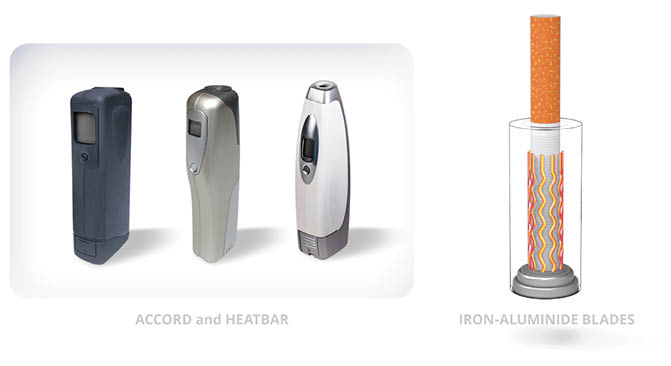

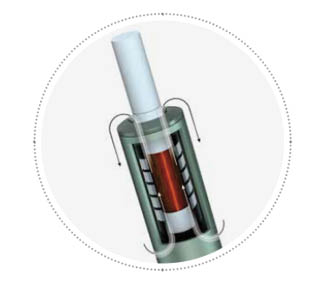

Heating Technology
External heating.
The heater was equipped with an array of eight blades made from an iron-aluminide alloy, one blade for each of the eight
possible puffs per cigarette.
With this design, the tobacco reached a peak temperature of approximately 500 °C.
Battery

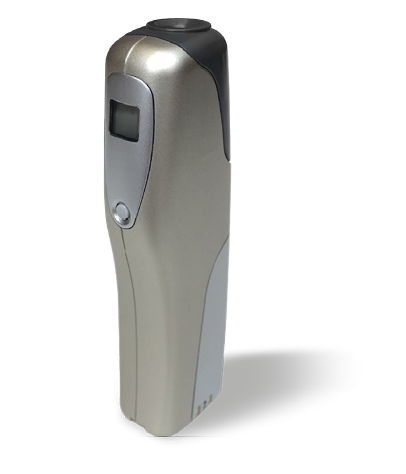

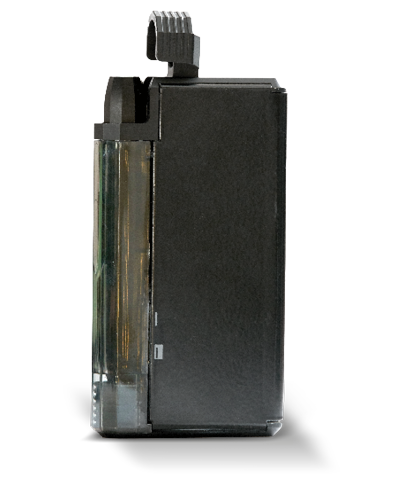

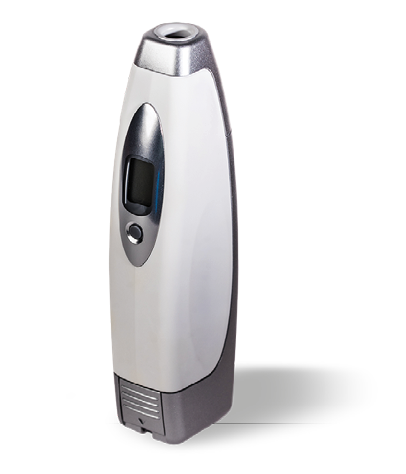

ELECTRICALLY HEATED CIGARETTE SMOKING SYSTEM (EHCSS) SERIES E*
1998 Commercialized as
Accord
in the U.S. (Richmond, Virginia)
1999 Commercialized as
in Japan (Osaka)
Oasis
YEARS OF DEVELOPMENT
1990 – 1998
Key Info
A specially designed cigarette was inserted into
a battery-powered heater equipped with an array
of eight blades that heated the tobacco and
minimized burning during puffing.
User Experience
A flow sensor initiated the heating circle
for each of the blades as the puff was detected.
The design allowed for greater control
of the available heat resulting in
lower temperatures and less combustion
as compared to lit-end cigarettes.
Experience limited to 8 puffs per cigarette.
*Name in regulatory submissions
Heating Technology
External heating.
The heater was equipped with an array of eight blades made from an iron-aluminide alloy, one blade for each of the eight
possible puffs per cigarette.
With this design, the tobacco reached a peak temperature of approximately 500 °C.
Battery

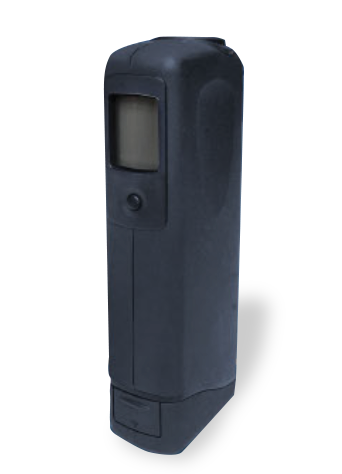

Electrically heated cigarette smoking system (EHCSS) Series JLI*
2002 Commercialized as
Accord
in the U.S. (Richmond, Virginia)
in Japan (Osaka, Kyoto, Kobe, and Nara)
Oasis
YEARS OF DEVELOPMENT
Middle of 1990s
Key Info
A specially designed cigarette was inserted into a battery-powered heater equipped with an array of eight blades that heated the tobacco and minimized burning during puffing.
The EHCSS Series K was more sensitive in puff detection and activation, and included a superior rechargeable battery.
Modifications to the cigarette such as a highly activated carbon filter was introduced.
User Experience
External heating.
The heater was equipped with an array of eight blades made from an iron-aluminide alloy, one blade for each of the eight
possible puffs per cigarette.
With this design, the tobacco reached a peak temperature
of approximately 500 °C.
*Name in regulatory submissions
Heating Technology
A flow sensor initiated the heating circle for
each of the blades as the puff was detected.
Flavor, filtration, airflow and heat control improved to further reduce formation of undesirable pyrolysis and combustion products.
The design allowed for greater control of the available heat resulting in lower temperatures and less combustion as compared to lit-end cigarettes.
Experience limited to 8 puffs per cigarette.
Battery
Electrically heated cigarette smoking system (EHCSS) Series K6 (THS 1.0)*
2006 Commercialized as
Heatbar
in Australia, Germany and Switzerland
YEARS OF DEVELOPMENT
2000-2004
Increased quantity of aerosol delivered due to a bigger blade.
Key Info
This was the first two-piece lab prototype
with internal tobacco stick heating system
and temperature control of the heating blade.
User Experience
Introduction of two-piece system, a holder
and a charger. Significant holder size reduction.

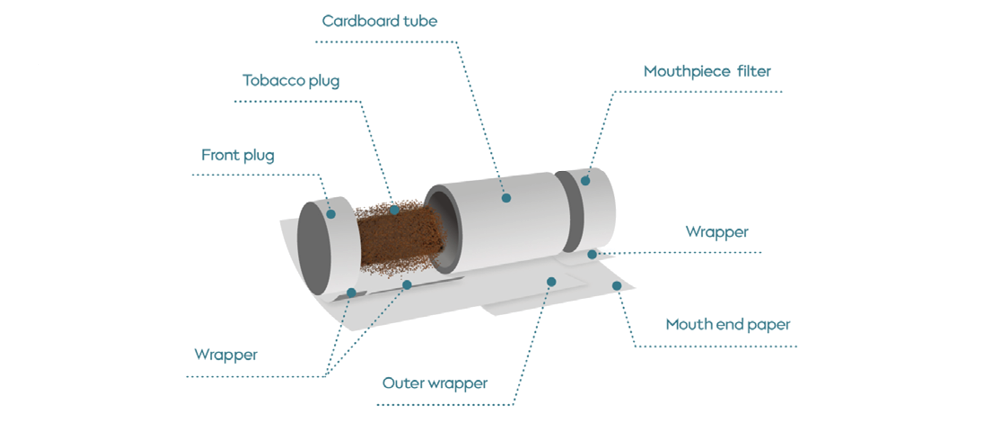

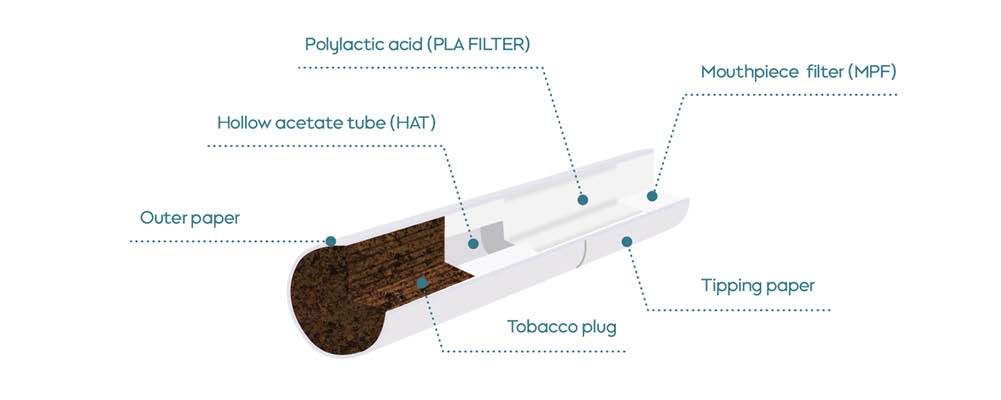

Revised tobacco stick:
– shredded cast leaf tobacco processing
– new filter element.
Experience limited to 6 minutes (continuous heating).
*Name in regulatory submissions

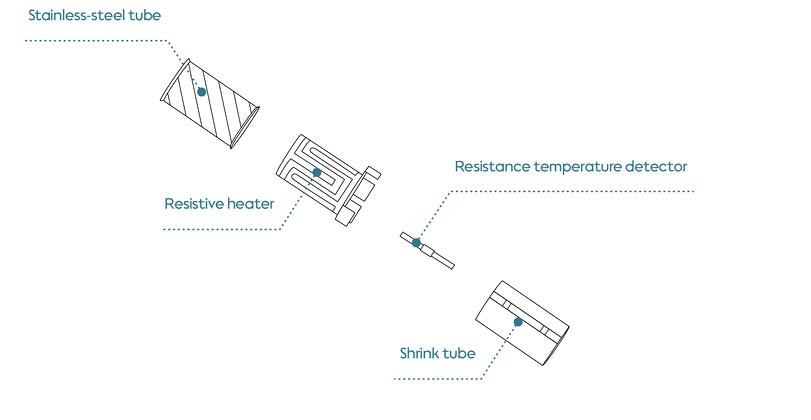

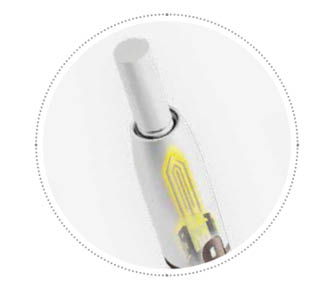

Heating Technology
Internal heating.
Sufficient for usage of one tobacco stick
before needing recharging in the charger.
Battery lifetime: up to 5000 sessions.
Tobacco heated within a precisely controlled temperature range to avoid burning it.
The heating blade measured 3 mm.
Battery

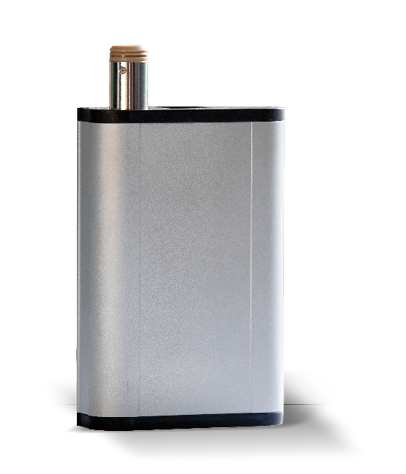

Tobacco Heating System (THS) 2.0*
YEARS OF DEVELOPMENT
2007-2009
THS 2.0
Key Info
This was the first industrial design prototype
developed for consumer research.
User Experience
1st industrial design prototype for consumer research. Improved consistency of sensory experience.
THS 2.1 (2009-11) tobacco plug manufacturing:
crimped tobacco.
Experience limited to 6 minutes (continuous heating).
*Name in regulatory submissions
Heating Technology
Internal heating.
Sufficient for usage of one tobacco stick
before needing recharging in the charger.
Battery lifetime: up to 5000 sessions.
Tobacco heated within a precisely controlled temperature range to avoid burning it.
The heating blade measured 3 mm.
Battery
Tobacco Heating System (THS) 2.1*
YEARS OF DEVELOPMENT
2009-2011
THS 2.1
Key Info
A new industrial design for commercialization
has been introduced.
A new heating blade design has been introduced,
used from this version onwards.
User Experience
Improved sensory perception, satisfaction,
and puff-to-puff consistency.
Introduction of the cleaning kit.
Consistent puffing ensured and usage target
to 6 minutes or 14 puffs.
*Name in regulatory submissions
Heating Technology
Internal heating.
Sufficient for usage of one tobacco stick
before needing recharging in the charger.
Battery lifetime: up to 7300 sessions.
Tobacco heated within a precisely controlled
temperature range to avoid burning it.
A new heating blade design, measuring 5 mm.
Battery
TOBACCO HEATING SYSTEM (THS) 2.2*
YEARS OF DEVELOPMENT
2011-2013

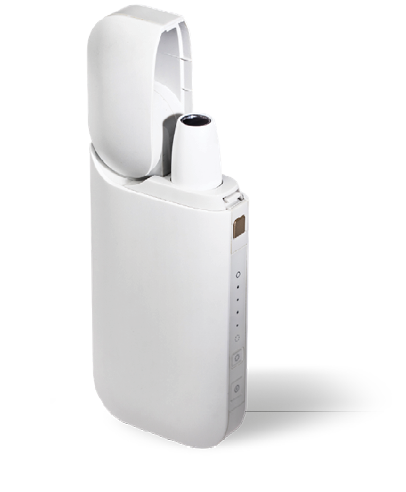

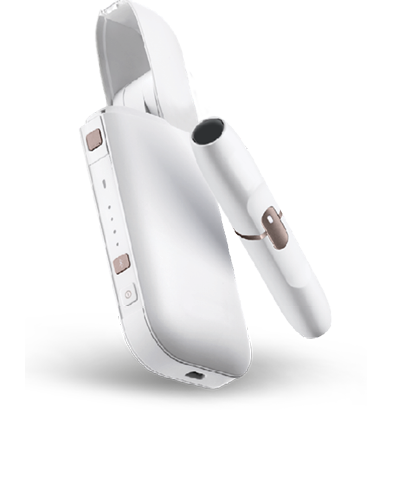

IQOS 2.2
2014 Commercialized as
Pilot launch in Milan (Italy) and Nagoya (Japan). In 2015 in Japan and Italy, as well as in cities in Portugal, Romania, Russia and Switzerland.
Key Info
The device ergonomics has been improved and
the design has been developed for a large-scale manufacturing.
User Experience
Ergonomics improved and product designed
for a large-scale manufacturing.
Improved and new cleaning kit.
Consistent puffing ensured and usage target
to 6 minutes or 14 puffs.
*Name in regulatory submissions
** Subject to battery performance degradation and conditions of use
Heating Technology
Internal heating.
Sufficient for usage of one tobacco stick
before needing recharging in the charger.
From this device onwards, introduction
of a new battery for the charger.
Battery lifetime: up to 7300 sessions.
Battery capacity: 2900 mAh nominal.
Charging time**:
Holder: 4:10 min
Charger: 90 min
Tobacco heated within a precisely controlled
temperature range to avoid burning it.
Heating blade design measuring 5 mm.
Battery
TOBACCO HEATING SYSTEM (THS) 2.2*
YEARS OF DEVELOPMENT
2014-2015
IQOS 2.4
2016 Commercialized as
Key Info
Many improvements have been introduced, amongst them the holder vibration to indicate the beginning
or the end of the experience.
User Experience
Introduction of the holder vibration indicating
the beginning or the end of the experience.
“Soft” latch mechanism, USB micro B on the charger.
Bluetooth enabling pairing with Android smartphones.
Autocleaning process of the holder introduced.
Operating temperature range for the device: 10-50 ºC.
*Name in regulatory submissions
** Subject to battery performance degradation and conditions of use
Heating Technology
Internal heating.
Sufficient for usage of one tobacco stick
before needing recharging in the charger.
Battery lifetime: up to 7300 sessions.
Battery capacity: 2900 mAh nominal.
Charging time**:
Holder: 4:10 min
Charger: 90 min
Tobacco heated within a precisely controlled
temperature range to avoid burning it.
Heating blade design measuring 5 mm.
Battery
TOBACCO HEATING SYSTEM (THS) 2.4*
YEARS OF DEVELOPMENT
2016-2017

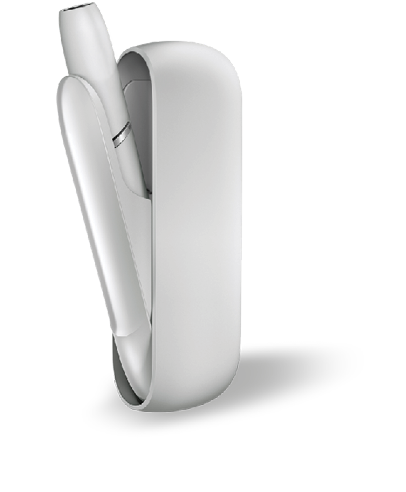

IQOS 2.4 PLUS
2018 Commercialized as
Key Info
The ergonomics and design have been changed with
the introduction of a buttonless side opening.
Robustness and device reliability have been ameliorated,
and the battery lifetime duplicated.
User Experience
New design with buttonless side opening, orientation-free insertion and magnetic clipping for the holder.
Orientation-free USB-C for easy charging.
From this device onwards, introduction
of the ProtectPlus™ system
– robust outer shell
– new side door opening
– redesigned electronic chamber of the holder.
Autocleaning after every 15-25 experiences.
Operating temperature range for the device: 0-50 ºC.
*Name in regulatory submissions
** Subject to battery performance degradation and conditions of use
Heating Technology
Internal heating.
Sufficient for usage of one tobacco stick
before needing recharging in the charger.
Battery lifetime: up to 14600 sessions.
Battery capacity: 2900 mAh nominal.
Charging time**:
Holder: 3:30 min
Charger: 120 min
Tobacco heated within a precisely controlled
temperature range to avoid burning it.
Heating blade design measuring 5 mm.
Battery
TOBACCO HEATING SYSTEM (THS) 2.2*
YEARS OF DEVELOPMENT
2017-2018

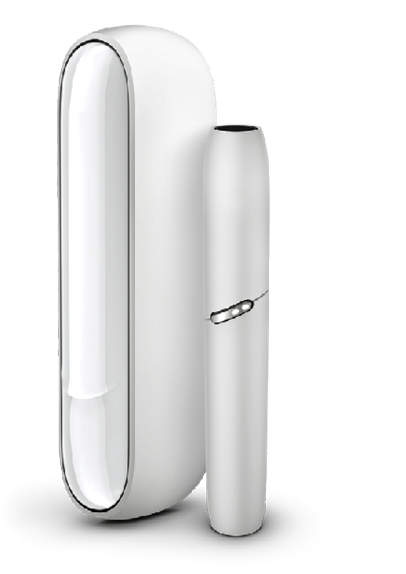

IQOS 3
2018 Commercialized as
Key Info
An integrated 1-part pocket size device,
providing 10 experiences with one charge.
User Experience
Portable and lightweight, its slender form
is intended to fit into pockets and hand.
Orientation-free USB-C design for easy charging,
lid closure and magnetic cap.
Vibrations can be customized via the Connect App.
Daylight LED illumination.
Autocleaning after every 10-20 experiences.
Operating temperature range for the device: 0-50 ºC.
Battery size, form and inner components changed,
more energy storage, 10 consecutive experiences.
*Name in regulatory submissions
** Subject to battery performance degradation and conditions of use
Heating Technology
Internal heating.
Single battery sufficient for 10 consecutive experiences before requiring recharging through connection to power.
Battery lifetime: up to 14600 sessions.
Battery capacity: 830 mAh nominal.
Charging time**:
Average: 75 min
Tobacco heated within a precisely controlled
temperature range to avoid burning it.
Heating blade design measuring 5 mm.
Battery
TOBACCO HEATING SYSTEM (THS) 2.2*
YEARS OF DEVELOPMENT
2017-2018

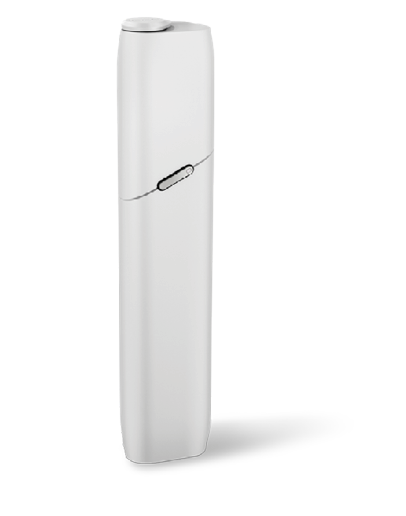

IQOS 3 MULTI
2018 Commercialized as
Key Info
The technology has been upgraded to provide
two consecutive uses without the need to recharge
the holder in between tobacco sticks.
Faster charging of the holder compared
to previous versions.
User Experience
Compact and ergonomic design.
Near-field Communication to access web for easy registration.
Connectivity: Bluetooth, passive.
Double LED indicator.
Operating temperature range for the device: 0-50 ºC.
Holder: 2 experiences without recharging.
Charger: 20 experiences without recharging.
*Name in regulatory submissions
** Subject to battery performance degradation and conditions of use
Heating Technology
Internal heating.
Battery has increased charging current and more
capacity to allow for 2 consecutive experiences.
Battery lifetime: up to 14600 sessions.
Battery capacity: 2900 mAh nominal.
Charging time**:
Av. 1:50 min, 0-1 use
Av. 3:25 min, 1-2 use
Av. 5:15 min, 0-2 use
Tobacco heated within a precisely controlled
temperature range to avoid burning it.
Heating blade design measuring 5 mm.
Battery
TOBACCO HEATING SYSTEM (THS) 2.2*
YEAR OF DEVELOPMENT
2019

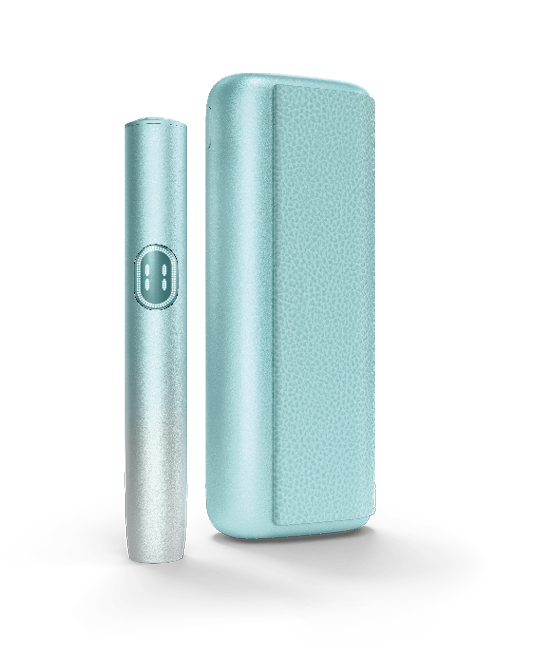

IQOS 3 DUO
2019 Commercialized as
Key Info
It uses the innovative bladeless SMARTCORE INDUCTION SYSTEM™: the induction activates the heating element inside the specially designed tobacco stick.
Tobacco is heated not burned with improved draw
and taste consistency from stick to stick, without cleaning and providing two consecutive uses without recharging the holder.
User Experience
New design with a wrap around flap.
Auto-start: tobacco stick detected when inserted
and device automatically turns on.
Accelerometer tells when the device is used
or not and turns the device off if needed.
“Haptic feedback” tells how long is left of the tobacco experience.
Holder: 2 experiences without recharging.
Charger: 20 experiences without recharging.
*Name in regulatory submissions
** Subject to battery performance degradation and conditions of use
Heating Technology
Internal heating.
Battery lifetime: up to 14600 sessions.
Battery capacity: 2900 mAh nominal.
Charging time**:
Av. 1:50 min, 0-1 use
Av. 3:25 min, 1-2 use
Av. 5:15 min, 0-2 use
Av. 10:05 min, full charge first time
Tobacco heated within a precisely controlled
temperature range to avoid burning it.
Bladeless SMARTCORE INDUCTION SYSTEM™: the induction activates the heating element inside the specially designed tobacco stick.
Battery
TOBACCO HEATING SYSTEM (THS) 3.0*
YEARS OF DEVELOPMENT
SEVERAL
YEARS

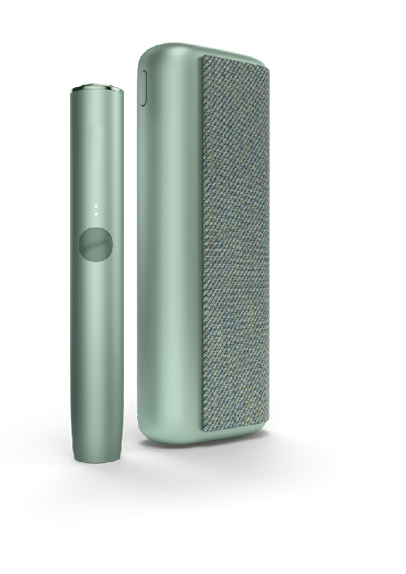

IQOS ILUMA
2021 Commercialized as
Key Info
Introduces the bladeless heating technology
ROUNDHEAT TOBACCO SYSTEM™:
a flexible heater surrounds the tobacco stick
and heats its external surface.
With a stronger focus on robustness and ease-of-use,
the all-in-one design allows for a low-maintenance
and easy to use experience.
User Experience
ROUNDHEAT TOBACCO SYSTEM™
Tobacco plug made from tobacco leaves cut in small pieces and processed specifically for the use of Roundheat Tobacco System™. The tobacco stick has a front plug to assist correct use and improve cleanliness, and a cardboard tube with air inlets to enhance aerosol formation.
The resistive heater is made of flexible polyimide stainless-steel tracks wrapped around a stainless-steel tube, with an insulated thermal casing around it.
When the tobacco stick is inserted inside the holder and the device is activated, the tobacco plug is heated externally by the electronically controlled resistive heater wrapped around the stick.
Heating Technology
Reliable due to a simplified heating technology.
Battery lifetime: up to 14600 sessions.
20 experiences without charging
Three consecutive experiences before requiring a cool down time.
Battery capacity: 2900 mAh nominal.
Charging time**: 150 min.
Simple and easy to understand user interface.
No cleaning needed due to the lack of blade.
Concave surface enhancing tactile sensitivity with different vibration patterns to indicate device status.
Battery
Tobacco Heating System (THS) 6.0*
YEARS OF DEVELOPMENT
2018-21

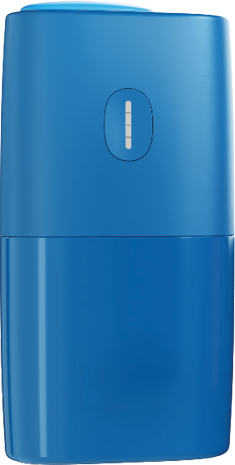

BONDS BY IQOS
2022 Commercialized as
*Name in regulatory submissions
** Subject to battery performance degradation and conditions of use
